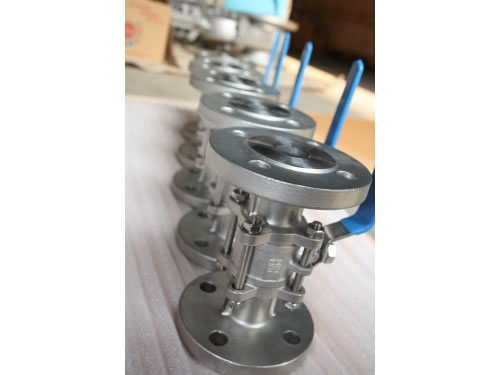

DIN 3PC Flanged Floating Ball Valve

Description
DIN 3PC flanged floating ball valve is mainly utilized for cutting off, distributing and altering the flowing direction of medium. This 3PC ball valve is convenient to open and close fully, just needing to rotate 90°. DIN valves feature small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance.

Advantages
1. Flanged floating ball valve can be widely used in the fields of water, oil, natural gas, weak corrosive liquid, etc.
2. DIN valves in KERUI are guaranteed within 18 months.
3. All sealing materials use standard PTFE and PPL, carbon fiber, etc. And they are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In this way, the sealing performance and wear resistance is guaranteed, leading a longer service life.

Components of DIN 3PC Flanged Floating Ball Valve

Name Material
Stainless Steel Carbon Steel
Bolt Stainless Steel SS304 Carbon Steel
Spring Washer Stainless Steel SS304 Stainless Steel SS304
Nut Stainless Steel SS304 Carbon Steel
Bonnet Stainless Steel Carbon Steel WCB
Valve Body Stainless Steel Carbon Steel WCB
Ball Stainless Steel CF8/CF8M Stainless Steel CF8
Seal Ring Stainless Steel CF8/CF8M PTFE
Valve Stem Stainless Steel CF8 Stainless Steel SS3304
Packing PTFE PTFE
Gland Nut Stainless Steel SS316 Stainless Steel SS304
Spring Washer Stainless Steel SS304 Stainless Steel SS304
Nut Stainless Steel SS304 Stainless Steel SS304
Handle Stainless Steel SS304 Stainless Steel SS304

Technical Parameters of DIN 3PC Flanged Floating Ball Valve
