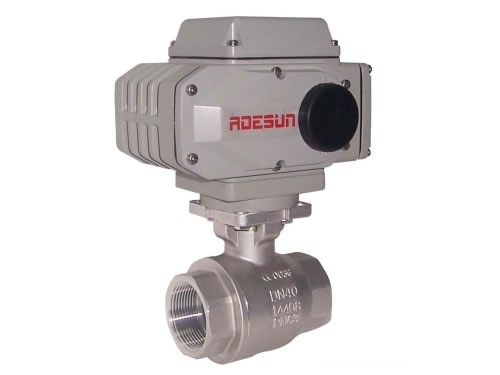

2PC Threaded Ball Valve with Electric Actuator

Description

2PC threaded ball valve with electric actuator is easy to open and close, just needing to rotate the handle 90°. This electric actuated ball valve characterizes small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance.

Application

2PC threaded ball valve with electric actuator is used for cutting off, distributing and changing the flowing direction of medium, widely used in water, oil, natural gas, weak corrosive liquid, etc.

Features

1. This electric actuated ball valve is low in friction loss coefficient, good in performance and excellent in sealing property.
2. The sealing materials of this 2PC threaded ball valve with electric actuator all adopt standard PTFE and PPL, carbon fiber, etc. They are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In thus way, the sealing performance and wear resistance is guaranteed, leading a longer service life.
3. The ball is of floating type. Therefore, under the function of pressure, it can generate a certain amount of displacement and press tightly on the sealing surface of exit end, directly guaranteeing the sealing performance.

Components and Materials of 2PC Threaded Ball Valve with Electric Actuator


Connection Type Female Thread Connection Butt Welding Connection
Name of Parts Valve Body / Bonnet WCB CF8(304) CF8M(316) WCB CF8(304) CF8M(316)
Ball / Stem 2Cr13 0Cr19Ni9 0Cr17Ni12Mo2 2Cr13 0Cr19Ni9 0Cr17Ni12Mo2
Seal Ring / Packing Reinforced PTFE / PPL
Working Condition Suitable Medium Water, Oil, Steam, etc Nitric Acid and Other Corrosive Liquids Acetic Acid and Other Corrosive Liquids Water, Oil, Steam, etc Nitric Acid and Other Corrosive Liquids Acetic Acid and Other Corrosive Liquids
Operating Temperature -29~180℃ (Reinforced PTFE), -29~300℃ (PPL)

Technical Parameters of 2PC Threaded Ball Valve with Electric Actuator


Connection Size


Nominal Diameter Female Thread Connection Butt Welding Connection
mm inch D L
(mm)
H Pipe Thread G B Weight
(kg)
Size (mm) Weight
(kg)
L D1 D2
10 3/8 10 60 57 3/8" 95 0.34 70 10 18 0.32
15 1/2 15 75 68 1/2" 110 0.47 75 15 24 0.48
20 3/4 20 80 70 3/4" 110 0.68 90 20 28 0.68
25 1 25 90 80 1" 140 1.2 100 25 34 1.2
32 11/4 32 110 85 11/4" 140 1.9 110 32 41 1.9
40 11/2 38 125 100 11/2" 180 2.7 128 38 49 2.7
50 2 50 144 110 2" 180 3.9 154 50 62 3.8
65 21/2 64 186 130 21/2" 200 7.1 193 64 78 7.0
80 3 78 206 150 3" 250 11.5 222 78 94 11.4
100 4 98 240 170 4" 250 20.5 273 98 124 20.3
