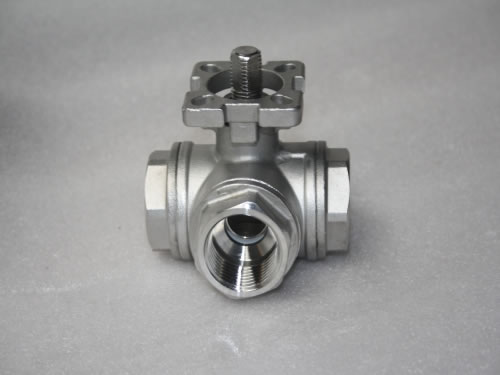

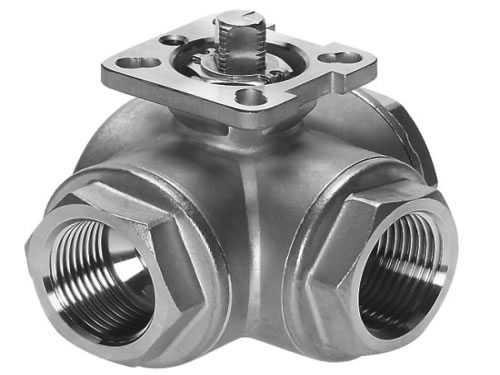

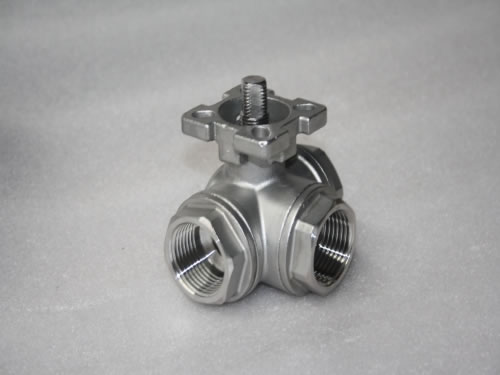

3-Way Ball Valve with ISO5211 Mounting Pad

Description

3-way threaded ball valve with ISO 5211 mounting pad is used for cutting off, distributing and changing the flowing direction of medium. Characterizing in small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance, this 3-way ball valve is widely used in water, oil, natural gas, weak corrosive liquid, etc.

Advantages

1. Threaded ball valves are easy to open and close.
2. KERUI products have received ISO9001 quality system certification, CE certification and API 6D standard.
3. We have excellent after-sale service system, winning widespread recognition and praise of our customers. Our 3-way ball valves are guaranteed within 18 months.
4. Our company pays much attention to technology renovation, process improvement, structure optimization and quality improvement.

Performance

1. Adopting PTEE that is of excellent self-lubrication, 3-way threaded ball valve is low in friction loss coefficient, good in performance and excellent in sealing property.
2. The sealing materials of this 3-way ball valve all adopt standard PTFE and PPL, carbon fiber, etc. And they are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In thus way, the sealing performance and wear resistance is guaranteed, leading a longer service life.

Main Parts of 3-Way Threaded Ball Valve with ISO 5211 Mounting Pad


Main Parts And Materials
NO. Part Name Material QTY
1 Stem 304/316 1
2 Body CF8/CF8M 1
3 Gland Nut 304/316 1
4 Stem Packing PTFE 1
5 Stop Ring PTFE 1
6 Ball 304/316 1
7 Joint Ring PTFE 2
8 Cap CF8/CF8M 2
9 Bolt 304/316 4
10 Nut 304/316 8
11 Washer 304/316 8

Technical Parameters of 3-Way Threaded Ball Valve with ISO 5211 Mounting Pad


Nominal Diameter Connection Diameter
DN in d G L LO A B H
15 1/2" 10 1/2" 68 34 110 23 130/136
20 3/4" 15 3/4" 78 39 160 42 135/141
25 1" 20 1" 86 43 190 47 139/173
32 11/4" 25 11/4" 111 55.5 190 47 158/186
40 11/2" 32 11/2" 126 63 206 53 165/203
50 2" 38 2" 143 71.5 216 57 202/228
