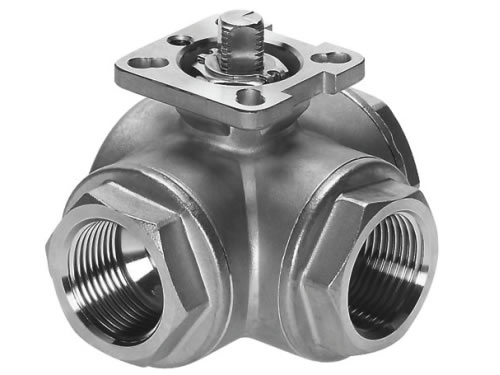

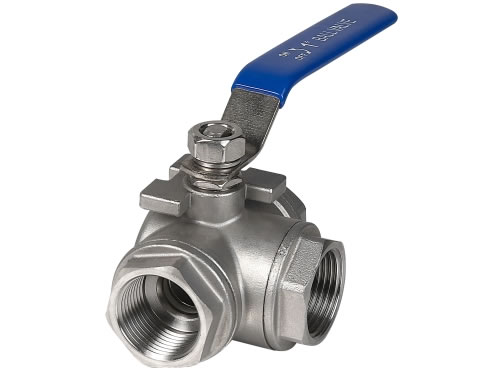

Description
3-way stainless steel ball valve features small volume, reliable sealing, simple structure, and convenient maintenance. Due to high corrosion resistance, it is widely applied in water, oil, natural gas, weak corrosive liquid, etc. This 3-way ball valve is used for cutting off, distributing and changing the flowing direction of medium.
Advantages
1. 3-way stainless steel ball valve is ISO 9001 / CE / API 6D certified.
2. Our products are strictly inspected before into storage, ensuring quality.
3. KERUI has excellent after-sale service system, providing optimal and timely service.
4. Our 3-way ball valves are guaranteed within the first 18 months.
Features
1. The ball of this 3-way stainless steel ball valve is of floating type, therefore, under the function of pressure, it can generate a certain amount of displacement and press tightly on the sealing surface of exit end, ensuring excellent sealing performance.
2. The sealing materials of 3-way ball valve all adopt standard PTFE and PPL, carbon fiber, etc. They are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. Thus, the sealing performance and wear resistance is guaranteed, leading a longer service life.
Main Components of 3-Way Stainless Steel Ball Valve
|
Main Parts And Materials
|
|
NO.
|
Part Name
|
Material
|
QTY
|
|
1
|
Plastic Cover
|
Plastics
|
1
|
|
2
|
Handle
|
304/316
|
1
|
|
3
|
Stem Nut
|
304/316
|
1
|
|
4
|
Washer
|
304/316
|
1
|
|
5
|
Flow Indication Plate
|
304/316
|
1
|
|
6
|
Body
|
CF8/CF8M
|
1
|
|
7
|
Gland Nut
|
304/316
|
1
|
|
8
|
Stem Packing
|
PTFE
|
1
|
|
9
|
Stop Ring
|
PTFE
|
1
|
|
10
|
Stem
|
304/316
|
1
|
|
11
|
Ball
|
304/316
|
1
|
|
12
|
Joint Ring
|
PTFE
|
4
|
|
13
|
Cap
|
CF8/CF8M
|
3
|
|
14
|
Joint Gasket
|
PTFE
|
3
|
Technical Parameters of 3-Way Stainless Steel Ball Valve
Design Standard: GB/T12224, GB/T8464
Pressure-Temperature Rating: GB/T12224
Face to Face Standard: G, Rc, Rp, NPT, BSP, DIN259/2999
Test Standard: GB/T23927
Material: WCB, CF8 (304), CF8M (316)
Operated Way: Handle, Actuator, Electric
