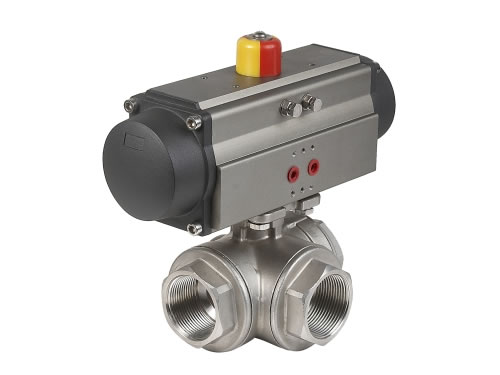

3-Way Ball Valve with Pneumatic Actuator

Description

3-way pneumatic actuated ball valve is of threaded end. This 3-way ball valve has distinct features like small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance. It is used for cutting off, distributing and changing the flowing direction of medium, widely applied in water, oil, natural gas, weak corrosive liquid, etc.

Features

1. The sealing materials of this pneumatic actuated ball valve all adopt standard PTFE and PPL, carbon fiber, etc. They are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In thus way, the sealing performance and wear resistance is guaranteed, leading a longer service life of ball valve.
2. Our company pays much attention to technology renovation, process improvement, structure optimization and quality improvement.
3. 3-way ball valves are strictly inspected before into storage, thus ensuring quality. They are ISO9001 / CE / API 6D certified.
4. We have excellent after-sale service system, providing optimal and timely service. Our pneumatic actuated ball valves are guaranteed within the first 18 months.

Main Components of Pneumatic Actuator


Name Pneumatic Actuator
Cylinder Aluminum Profiles (Hard Anodizing)
End Cap Casting Aluminum (Epoxy Resin Spraying)
Piston Casting Aluminum
Axle Plating Nickel Phosphorus Alloy Steel
O-ring NBR
Bolt 304 Stainless Steel

Technical Parameters of Pneumatic Actuated Ball Valve


Diameter External Connection Dimension
DN in d G L LO A B H
15 1/2" 10 1/2" 68 34 110 23 130/136
20 3/4" 15 3/4" 78 39 160 42 135/141
25 1" 20 1" 86 43 190 47 139/173
32 11/4" 25 11/4" 111 55.5 190 47 158/186
40 11/2" 32 11/2" 126 63 206 53 165/203
50 2" 38 2" 143 71.5 216 57 202/228
