Description

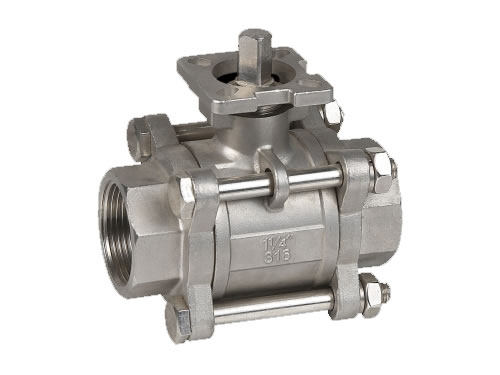

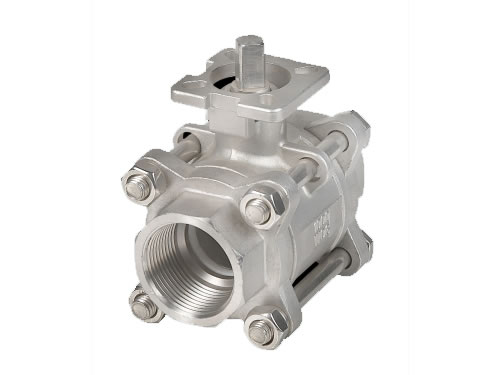

3PC threaded ball valve with ISO 5211 mounting pad has distinct features like small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance. This 3PC ball valve is used for cutting off, distributing and changing the flowing direction of medium, widely applied in water, oil, natural gas, weak corrosive liquid, etc.
Advantages
1. Threaded ball valves are ISO9001 / CE / API 6D certified. They are guaranteed within the first 18 months.
2. KERUI products are strictly inspected before into storage, thus ensuring quality.
3. Our company has excellent after-sale service system, providing optimal and timely service.
Performance
The sealing materials of threaded ball valves all adopt standard PTFE and PPL, carbon fiber, etc. They are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In thus way, the sealing performance and wear resistance is guaranteed, leading a longer service life.
Main Parts of 3PC Threaded Ball Valve
|
Main Parts And Materials
|
|
NO.
|
Part Name
|
Material
|
QTY
|
|
1
|
Stem
|
304/316
|
1
|
|
2
|
Body
|
CF8/CF8M
|
1
|
|
3
|
Gland Nut
|
304/316
|
1
|
|
4
|
Stem Packing
|
PTFE
|
1
|
|
5
|
Stop Ring
|
PTFE
|
1
|
|
6
|
Ball
|
304/316
|
1
|
|
7
|
Joint Ring
|
PTFE
|
2
|
|
8
|
Cap
|
CF8/CF8M
|
2
|
|
9
|
Bolt
|
304/316
|
4
|
|
10
|
Nut
|
304/316
|
8
|
|
11
|
Washer
|
304/316
|
8
|
Technical Parameters of 3PC Threaded Ball Valve with ISO 5211 Mounting Pad
Design Standard: GB/T12224, GB/T8464
Pressure-Temperature Rating: GB/T12224
Face to Face Standard: GB/T25188.3
End Connection Standard: G, Rc, Rp, NPT, BSP, DIN259/2999
Test Standard: GB/T23927
Material: WCB, CF8 (304), CF8M (316)
Operated Way: Handle, Actuator, Electric
