Description

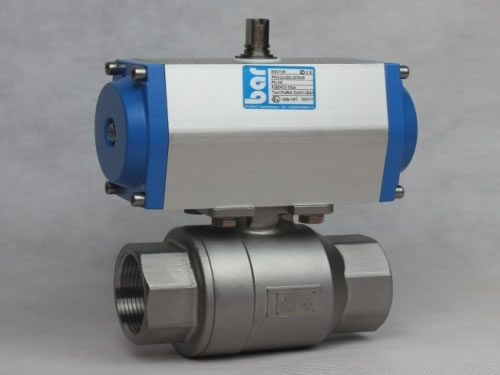

2PC pneumatic actuated ball valve is mainly utilized for cutting off, distributing and altering the flowing direction of medium. This threaded ball valve is convenient to open and close fully. It is widely used in water, oil, natural gas, weak corrosive liquid, etc.
Features
1. Our company attaches much importance on technology renovation, process improvement, structure optimization and quality improvement. Besides, we have excellent after-sale service system, winning a gamut of satisfied customers.
2. This pneumatic actuated ball valve has distinct features like small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance.
3. All sealing materials use standard PTFE and PPL, carbon fiber, etc. And they are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In this way, the sealing performance and wear resistance is guaranteed, leading a longer service life of this 2PC ball valve.
4. Threaded ball valves in KERUI are guaranteed within 18 months.
Main Components of Pneumatic Actuator
|
Name
|
Pneumatic Actuator
|
|
Cylinder
|
Aluminum Profiles (Hard Anodizing)
|
|
End Cap
|
Casting Aluminum (Epoxy Resin Spraying)
|
|
Piston
|
Casting Aluminum
|
|
Axle
|
Plating Nickel Phosphorus Alloy Steel
|
|
O-ring
|
NBR
|
|
Bolt
|
304 Stainless Steel
|
Technical Parameters of 2PC Pneumatic Actuated Ball Valve
Parameters of Pneumatic Actuator
|
Pneumatic Actuator
|
Single Acting or Double Acting
|
|
Gas Inlet Pressure
|
0.4-0.8MPA
|
|
Air Connection
|
G1/4", G1/8", G3/8", G1/2"
|
|
Acting Form
|
Single Acting or Double Acting
|
|
Available Accessories
|
Magnetic Valve, Limit Switch, etc
|
Connection Dimension of 2PC Pneumatic Actuated Ball Valve
|
Specification
|
Actuator
|
A
|
H
|
L
|
|
15
|
ZMA32
|
110
|
42
|
64
|
|
20
|
ZMA52
|
160
|
49
|
70
|
|
25
|
ZMA52
|
160
|
58
|
85
|
|
32
|
ZMA63
|
190
|
63
|
94
|
|
40
|
ZMA63
|
190
|
71
|
105
|
|
50
|
ZMA75
|
206
|
78
|
125
|
|
65
|
ZMA92
|
260
|
102
|
155
|
|
80
|
ZMA105
|
286
|
109
|
173
|
