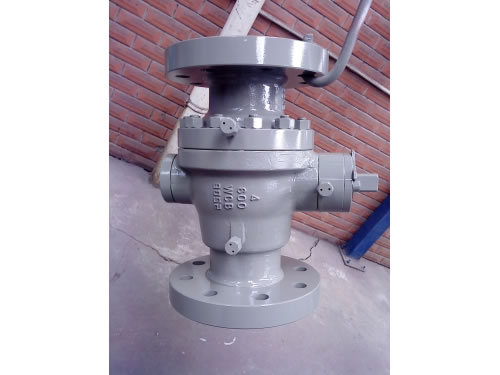

API 2PC Flanged Trunnion Mounted Ball Valve

Description
The ball of API 2PC trunnion mounted ball valve is fixed, thus it does not move no matter how strong is the pressure. This flanged ball valve is often combined with floating valve seat, which will move to press the seal ring on the ball under the pressure of media, guaranteeing the sealing performance.

Application
API 2PC flanged ball valves can be widely used in such pipelines as tap water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, shipbuilding, metallurgy, energy systems, etc.

Advantages
1. API 2PC flanged ball valve is easy to open. It has excellent sealing performance, low friction between sealing surfaces and long service life.
2. The body of this trunnion mounted ball valve is cast in precision. Thus it is good in performance.
3. The surface is finished second time, thus it is smooth and bright. The bonnet is processed by numerical control machine.
4. KERUI has been awarded by ISO9001:2008 international system certification, API 6D certification, CE certification, etc.
5. Sealing materials can be chosen based on media to increase sealing performance and wear resistance, reducing cost.
6. Our trunnion mounted ball valves are guaranteed within 18 months and enjoy lifelong technical service.

Components
API 2PC flanged ball valve is composed of valve body, bonnet, ball, valve stem, valve seat, sealing materials, etc.

Number Parts Carbon Steel Series Stainless Steel Series Low Temperature Series Anti-sulfur Series
Carbon Steel Series Stainless Steel Series
1 Valve Body A216
WCB
A351-CF8
CF8M.CF3.CF3M
A352 LCB. LCC GB/T 12229
A216 WCB
A351 CF8M
2 Valve Seat   PTFE, RPTFE, Sintering Carbon Fiber, Metal + Rubber
3 Ball A105+ HCr/ENP A351-CF8
CF8M、CF3、CF3M
A352
LCB.LCC+ENP
A105+HCr/ENP A351 CF8M+ENP
4 Spring   INCONEL 750
5 Bolt A193 B7 A193 B8.B8M A320 L7 A193 B7M A193 B8M
6 Gasket   Flexible Graphite + Stainless Steel
7 Nut A194 2H A194 8M A194 4 A194 2HM A194 8M
8 Bonnet A216  WCB A351 Ct8 CF8 CF3 CF3M A352 LCB. LCC GB/T 12229
A216 WCB
A351 CF8M
9 Valve Stem A182 F6a A182 F304、 316 A182 F6a A182 F304 A182 F316
10 Axle Bushing   PTFE, Sintering Carbon Fiber
  11 Packing Seat A182 F6a   A182 F6a A182 F6a
12 Packing   Flexible Graphite + PTFE
13 Packing Gland A216 WCB A351 B8 B8M A320 L7 A193 B7M A193 B8M
14 Screw A193 B7 A193 B8.B8M A320 L7 A193 B7M A193 B8M
15 Locating Pin GB/T 700 Q235A+Zn(Cr)
16 Closing Ring GB/T 1222 65Mn
17 Handle A216 WCB

Technical Parameters of API 2PC Flanged Ball Valve

Valves
Production Standard
Product Specification Design Specification Face to Face Flange End Test and Check Marking Supply
GB/T12237 JB/T7745 GB/T12221 JB/T7745 JB/T9092 JB/T9092 GB/T12220 JB/T7928
API 608 API 6D ANSI B16. 10 API 6D ANSI B16.5 API 598 API 6D MSS SP-25 API 6D API 608 API6D
