Description

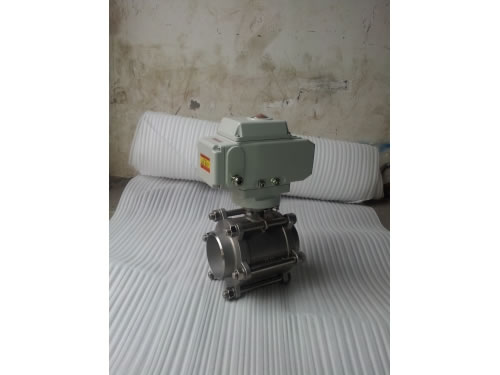

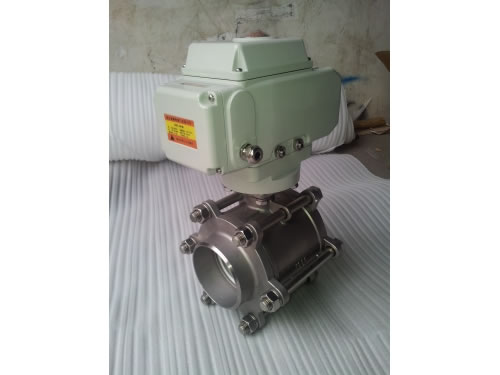

This kind of 3PC electric actuated ball valve is of butt weld end. And this butt weld end ball valve has such excellent performance as small volume, simple structure, convenient maintenance and high corrosion resistance. It is used for cutting off, distributing and changing the flowing direction of medium, widely used in such pipelines as water, oil, natural gas, weak corrosive liquid, etc.
Advantages
1. 3PC electric actuated ball valve is easy to open and close fully, just needing to rotate 90°.
2. Butt weld end ball valves are strictly inspected before into storage, thus ensuring products’ quality.
3. KERUI products have received ISO9001 quality system certification, CE certification and API 6D standard.
4. We have excellent after-sale service system, winning widespread recognition and praise of our customers. Our 3PC electric actuated ball valves are guaranteed within first 18 months.
Performance
1. Butt weld end ball valves are low in friction loss coefficient, good in performance and excellent in sealing property.
2. The sealing materials of this 3PC electric actuated ball valve all adopt standard PTFE and PPL, carbon fiber, etc. And they are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In thus way, the sealing performance and wear resistance is guaranteed, leading a longer service life.
Main Components of 3PC Butt Weld End Ball Valve
|
Parts Name
|
Materials
|
|
Stainless Steel (SS)
|
Carbon Steel (CS)
|
|
Valve Body
|
SS CF8M
|
CS WCB
|
|
Seal Ring
|
PTFE
|
PTFE
|
|
Bonnet
|
SS CF8M
|
CS WCB
|
|
Ball
|
SS CF8M
|
SS 316
|
|
Valve Stem
|
SS 316
|
SS 316
|
|
Nut
|
SS 304
|
SS 304
|
|
Gasket
|
SS 304
|
SS 304
|
|
Handle Cover
|
Plastics
|
Plastics
|
|
Handle
|
SS 304
|
SS 304
|
|
Stem Nut
|
SS 304
|
SS 304
|
|
Gasket
|
SS 304
|
SS 304
|
|
Pressure Lever Nut
|
SS 304
|
SS 304
|
|
Packing
|
PTFE
|
PTFE
|
|
Thrust Washer
|
PTFE
|
PTFE
|
|
Packing
|
PTFE
|
PTFE
|
|
Bolt
|
SS 304
|
SS 304
|
Technical Parameters of 3PC Electric Actuated Ball Valve
|
DIMENSIONS
|
|
NPS
|
DN
|
d
|
D
|
L
|
L2
|
H
|
4-d1
|
W
|
|
3/8
|
10
|
12
|
17
|
65
|
100
|
50
|
7
|
95
|
|
1/2
|
15
|
15
|
21
|
75
|
110
|
60
|
8
|
110
|
|
3/4
|
20
|
20
|
27
|
85
|
130
|
63
|
8.5
|
110
|
|
1
|
25
|
25
|
34
|
90
|
150
|
80
|
8.5
|
140
|
|
1-1/4
|
32
|
32
|
43
|
112
|
160
|
86
|
10
|
140
|
|
1-1/2
|
40
|
38
|
49
|
120
|
180
|
94
|
10
|
155
|
|
2
|
50
|
50
|
61
|
145
|
200
|
104
|
11
|
180
|
|
2-1/2
|
65
|
65
|
76
|
170
|
230
|
140
|
16
|
220
|
|
3
|
80
|
80
|
89
|
200
|
260
|
152
|
18
|
260
|
|
4
|
100
|
100
|
106
|
263
|
320
|
170
|
20
|
350
|
