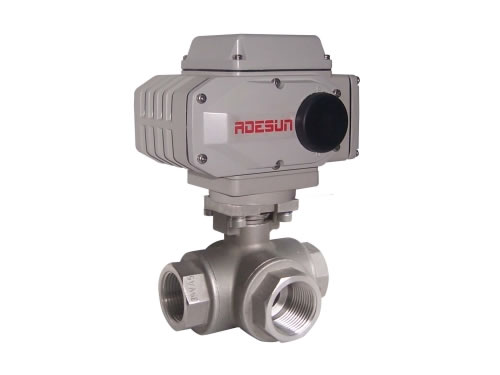

3-Way Ball Valve with Electric Actuator

Description

Our 3-way electric ball valve is of thread end. This 3-way ball valve is mainly utilized for cutting, distributing, and changing the flowing direction of medium.

Application

3-way electric ball valve is widely used in such applications as oil, water, natural gas and some weak corrosive liquids.

Performance

1. Owing to good self-lubrication of some materials like PTFE, the 3-way ball valve features low frication loss coefficient, stable performance, wide range of application and excellent sealing. Moreover, it is not easy to go aging.
2. The ball of 3-way electric ball valve is in float type. Under the pressure of medium, the ball can move and press tightly on sealing surface of exit end, guaranteeing good sealing performance.
3. The seal ring adopts elastic materials, thus it is easy to seal and good in sealing. Furthermore, the sealing capability of the 3-way ball valve increases as the medium pressure increases.

Main Components and Materials of 3-Way Electric Ball Valve


Connection Type Female Thread Connection Butt Welding Connection
Name of Parts Valve Body / Bonnet WCB CF8(304) CF8M(316) WCB CF8(304) CF8M(316)
Ball / Stem 2Cr13 0Cr19Ni9 0Cr17Ni12Mo2 2Cr13 0Cr19Ni9 0Cr17Ni12Mo2
Seal Ring / Packing Reinforced PTFE / PPL
Working Condition Suitable Medium Water, Oil, Steam, etc Nitric Acid and Other Corrosive Liquids Acetic Acid and Other Corrosive Liquids Water, Oil, Steam, etc Nitric Acid and Other Corrosive Liquids Acetic Acid and Other Corrosive Liquids
Operating Temperature -29~180℃ (Reinforced PTFE), -29~300℃ (PPL)

Technical Parameters of 3-Way Electric Ball Valve


Caliber Actuator A H L
15 ZAM32 110 42 72
20 ZAM52 160 49 82
25 ZAM52 160 59 90
32 ZAM63 190 63 112
40 ZAM63 190 71 120
50 ZAM75 206 78 145
65 ZAM92 260 102 185
80 ZAM105 286 109 210
100 ZAM125 340 140 268
