Description

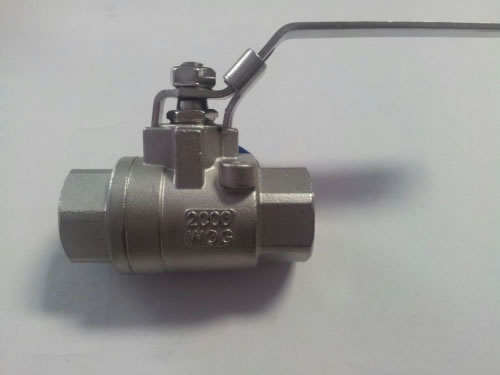

Two piece full bore ball valve 2000 WOG is mainly utilized for cutting off, distributing and altering the flowing direction of medium. This thread end ball valve is convenient to open and close fully. It has distinct features like small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance. Two piece full bore ball valve 2000 WOG can be widely used in water, oil, natural gas, weak corrosive liquid, etc.
Advantages
1. Our company attaches much importance on technology renovation, process improvement, structure optimization and quality improvement. Besides, we have excellent after-sale service system, winning a gamut of satisfied customers.
2. Two piece full bore ball valve 2000 WOG in KERUI are guaranteed within 18 months.
3. All sealing materials use standard PTFE and PPL, carbon fiber, etc. And they are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In this way, the sealing performance and wear resistance is guaranteed, leading a longer service life.
4. PTEE of excellent self-lubrication has been adopted for this thread end ball valve, leading low friction loss coefficient, good performance and excellent sealing property.
Component of Two Piece Full Bore Ball Valve 2000 WOG
| Main Parts And Materials | |||
| NO. | Part Name | Material | QTY |
| 1 | Cap | CF8/CF8M | 1 |
| 2 | Joint Gasket | PTFE | 1 |
| 3 | Body | CF8/CF8M | 1 |
| 4 | Ball | 304/316 | 1 |
| 5 | Stem | 304/316 | 1 |
| 6 | Joint Ring | PTFE | 1 |
| 7 | Thrust Washer | PTFE | 1 |
| 8 | Stem Packing | PTFE | 1 |
| 9 | Gland Nut | 304/316 | 1 |
| 10 | Thrust Washer | 304/316 | 1 |
| 11 | Stem Nut | 304/316 | 1 |
| 12 | Handle | 304/316 | 1 |
| 13 | Handle Cover | Plastic | 1 |
Technical Parameters of Two Piece Full Bore Ball Valve 2000 WOG
